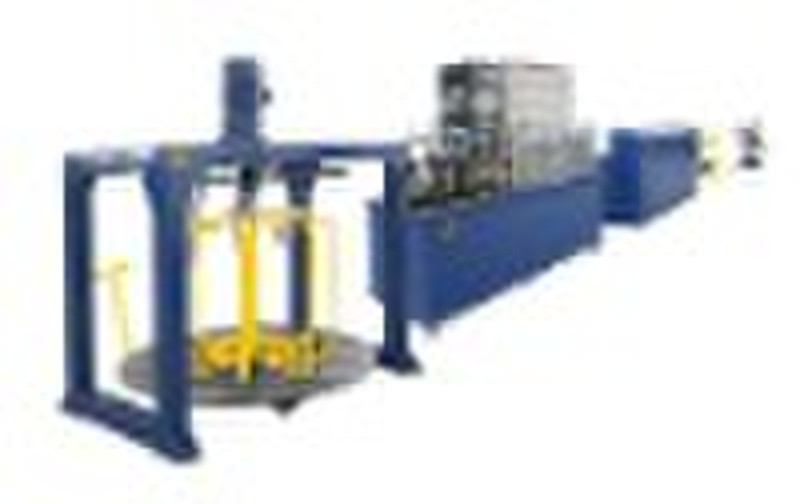

CCS Wire Machine

CCS wire machine production line, CCS Wire Machine is specially for producing bimetallic CCS wire. The Copper CladSteel Line is applyingclad-welding technique, the wire is made by fusing a coresteel with an external copper cladding.The two different kinds of metals are metallurgically bonded at their interfaceand the copper clading thickness remains constant, so they become a single andindissociable wire. ApplicationofCCSwire 1)CATVcoaxialcablesubscriberlineinnerconductor; 2)Theparalleltwin-coretelephoneuserscoredwirecommunicationsline; 3)avarietyofelectronicconnectorcomponents; 4)Themilitarywasdoublecoredwire; 5)powertransmissionandtelephonelinesoverheadline; 6)ElectrifiedRailway,electrifiedlightrailOCSoverheadline; 7)Powercableshieldingbraidline; 8)theelectricpowerindustrygroundingrods. Specification: Item 30%IACS 40%IACS SizeoffinishedCCAwire Φ10mm Φ10mm Producespeed 10m/min,Invertercontrolled&adjustable SpecificationofSteelrod Φ8.5mm Φ8.0mm SpecificationofCopperstrip (Thicknessbywidth) 0.38mm×31.4mm 0.65mm×31.4mm TotalPower 28KW 28KW Voltage 380V±10%,50Hz,Useful-earthing Techniquemethod Argongas-protectionverticalcladwelding,nopollution Gas >60L/min99.999%High-pureargon Water Circularpurewaterbytank M/CDimension 13000×4000×2000mm Weight 6000Kg
