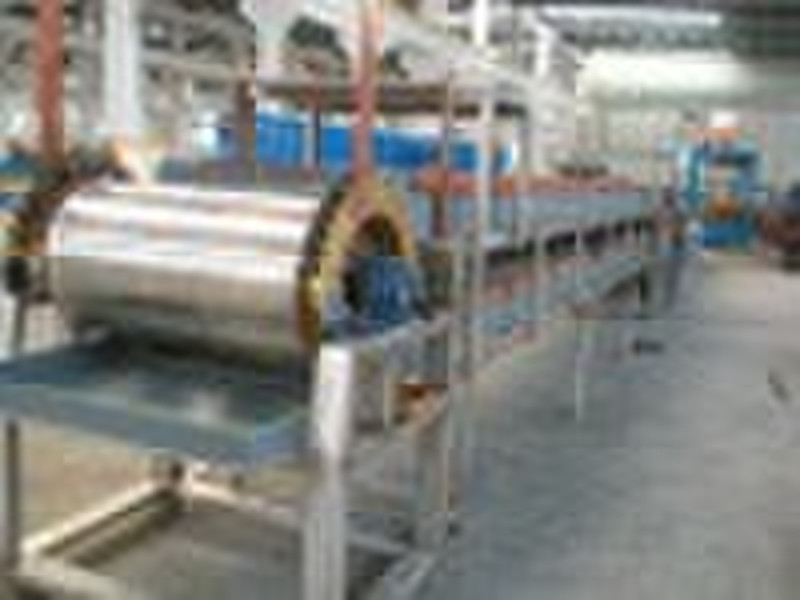

Copper Coating Machine
Jing Lin
Contact person
Basic Information
Electroplating Machine, Copper Coating Machine, Copper plating machine To make the CCA, CCS wire by electroplating technology. Feature: 1. Double water tank for space saving; 2. Speed controlled by frequency inverter; 3. Wire take-up machine is controlled by torque motor with stable tension. Specification: AluminiumAlloysize:2.0mm 3.0mm Speed:0 50m/min Copperlayerbyweight:10%-12% Aluminumratebyweight:88%-90% Machinetype CCSWirePlating CCAMWirePlating Rectifier 5000A/12V 10000A/12V 5000A/9V 10000A/9V WireNo. 1 30 1 40 Wirespeed 12 60m/min 12 60m/min 8 32m/min 8 32m/min Wirediameter 1.2 2.0mm 0.5 2.0mm 1.5 3.0mm 1.2 1.6mm Mainmotor 3kw 5.5kw 3kw 8kw Totalpower 35kw 65kw 35kw 65kw Weight 5Ton 8Ton 5Ton 8Ton Output 1500KGS 7000KGS 1000KGS 3000KGS
Delivery terms and packaging
Port: SHANGHAI
