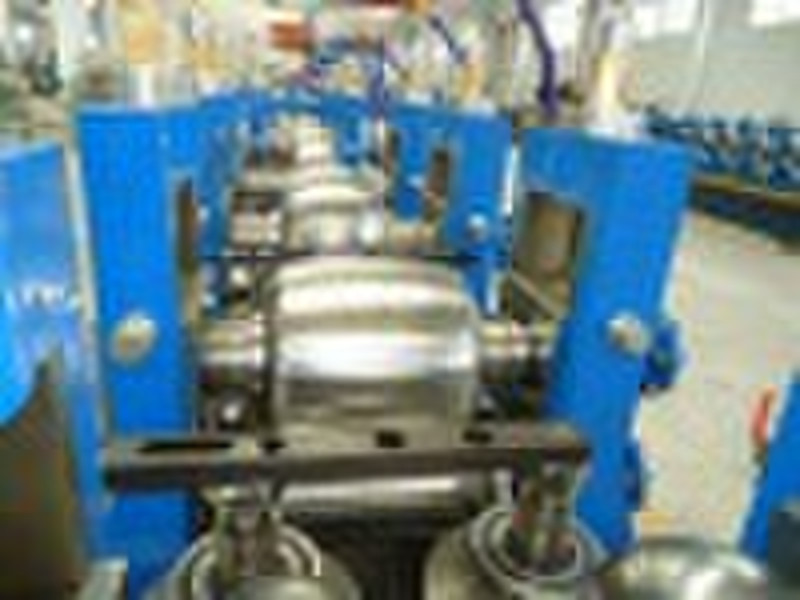

ERW Tube Mill

Tube Mill, Steel Pipe Production Line, Pipe Mill 1. To make steel pipe O.D. from 0.3 to 11inch(8mm to 273mm) 2. Wall thickness from 0.3 to 12mm. Thecompletelineincludethefollowingdevice: 1.DoublesideUncoiler 2.HoopcageorHorizontalAccumulator 3.MainMachine: 3.1.FormingMachine 3.2.RollerSystemofForming 3.3.SeamGuide 3.4.HighFrequencyInductionWeldingMachine 3.5.RollerSystemforMoving 3.6.BurrRemovingFrame(InsideandoutsideBurr) 3.7.WaterCoolingSystem 3.8.SizingMachine 3.9.RollerSystemofLeveling 3.10.SpeedTestingWheel 3.11.TurkishFrame 4.AutoFlyingSawControlledbyComputer 5.Runouttable 6.ElectricControlEquipment 7.HighFrequencyWeldingMachine Specification: Item PipeO.D (Round) SquarePipe WallThickness Max.Speed MainMotor H.F.Welder VZH-16 Φ0.3 Φ0.6inch (Φ8mm Φ16mm) 7×7mm 15×15mm 0.3 1.0mm 100m/Min 22Kw 60Kw VZH-20 Φ0.4 Φ1.0inch (Φ10mm Φ25mm) 8×8mm 20×20mm 0.4 1.0mm 90m/Min 45Kw 100Kw VZH-25 Φ0.4 Φ1.2inch (Φ10mm Φ30mm) 8×8mm 25×25mm 0.5 1.5mm 90m/Min 45Kw 100Kw VZH-32 Φ0.5 Φ1.5inch (Φ12mm Φ38mm) 10×10mm 30×30mm 0.5 1.8mm 90m/Min 75Kw 100Kw VZH-45 Φ0.63 Φ2.0inch (Φ16mm Φ51mm) 13×13mm 40×40mm 0.6 2.0mm 80m/Min 45Kw×2 150Kw VZH-50 Φ0.8 Φ2.5inch (Φ20mm Φ63.5mm) 16×16mm 50×50mm 0.8 3.0mm 70m/Min 75Kw×2 200Kw VZH-60 Φ1.0 Φ3.0inch (Φ25mm Φ76mm) 20×20mm 60×60mm 1.0 3.5mm 70m/Min 90Kw×2 200Kw VZH-76 Φ1.2 3.5inch (Φ30mm Φ89mm) 25x25mm 70x70mm 1.0 4.0mm 70m/Min 132Kw×2 300Kw VZH-89 Φ1.60 Φ4.00inch (Φ40mm Φ100mm) 30×30mm 80x80mm 1.5 4.5mm 65m/Min 132Kw×2 300Kw VZH-125 Φ1.60inch 5.00inch (Φ40mm Φ130mm) 35x35mm 100x100mm 1.8 5.5mm 45m/Min 160Kw×2 400Kw VZH-165 Φ2.00 6.50inch (Φ50mm Φ165mm) 40×40mm 130×130mm 2.0 6.0mm 45m/Min 200Kw×2 500Kw VZH-219 Φ3.50 8.60inch (Φ89mm Φ219mm) 70x70mm 170×170mm 4.0 8.0mm 40m/Min 200Kw×2 600Kw VZH-273 Φ4.00 10.7inch (Φ100mm Φ273mm) 80x80mm 215x215mm 4.0 12mm 25m/Min 320Kw×2 800Kw
