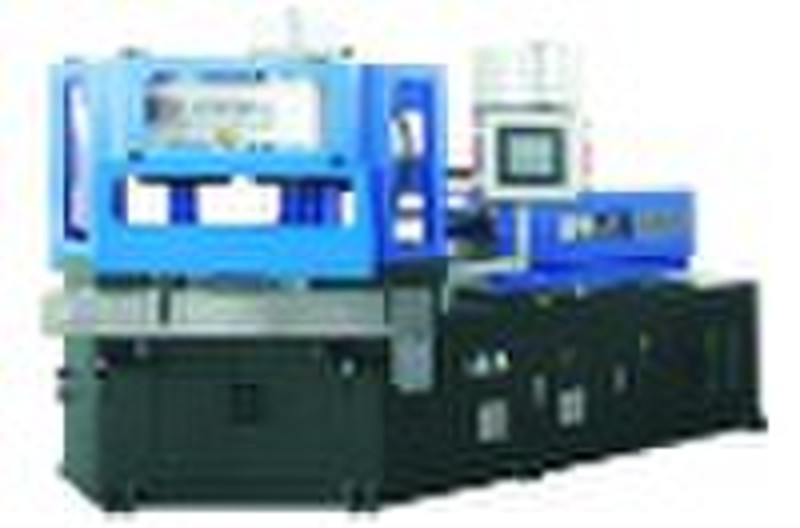

MSZ-30 Injection Blow Molding Machine

Injection blow molding machine is suitable for producing high quality plastic bottles,used as medicine and cosmetic. Features: 1) High pressure& speedinjection system in vertical design 2) V.D pump control for more energy saving 3) SIEMENS PLC control system for high speed information communication and high precisiontemperature control 4) Hot-runner injection-blow mold with horizontal three positions for continuous production with no leftovers or waste material 5) Top brand electric parts and hydraulic parts for long service life 6) High speed: cycle time only 10.5sec for 40ml bottle mould in 14 cavities Suitable for high quantity production. 7) Bottle size: 3 to 400mL . 8) 10mL, Cav-16, 100mL, Cav-9. 9) Materials: PP, PE, PS, SAN. EVA. SpecificationofMSZ-30InjectionBlowMoldingMachine Item Unit MSZ-30 InjectionSystem 1 ScrewDiameter mm 35 2 ScrewL/D 22:1 3 Max.Theoreticalinjectioncapacity cm3 154 4 Injectionweight(HDPE) g 146 5 Injectionpressure Mpa 167 6 Max.Screwstroke mm 135 7 Max.Screwspeed rpm 10 225 8 Heatingpower kw 6.56 9 Nos.ofheatingzone Qty 5 Clamping&BlowingSystem 10 Clampingforceofinject. KN 292 11 Clampingforceofblowing KN 46.70 12 Openingstrokeofinject. mm 140 13 Openingstrokeofblowing mm 140 14 Liftingheightofrotarytable mm 70 15 Maxplanesizeofdie(L*W) mm 400×340 16 Minmouldthickness mm 180 17 Heatingcapacityofmould KW 3.6 StrippingSystem 18 Strippingstroke mm 200 19 Drycycle sec 4 DrivingSystem 20 Motorpower kw 15 21 Pressureofhyraulicsystem Mpa 14 ProductRange 22 Bottlecapacityrange ml 5 800 23 Max.Bottleheight mm 220 24 Max.Diameterofbottle mm 80 others 25 Min.Workingairpressure Mpa 1 26 Dischargerateofcompressedair M³/mm ≥0.3 27 Consumptionofcoolingwater M³/h 3 28 Totalpower kw 25 29 Dimensionofmachine mm 3100×1200×2200 30 Machineweight Ton 3.30
