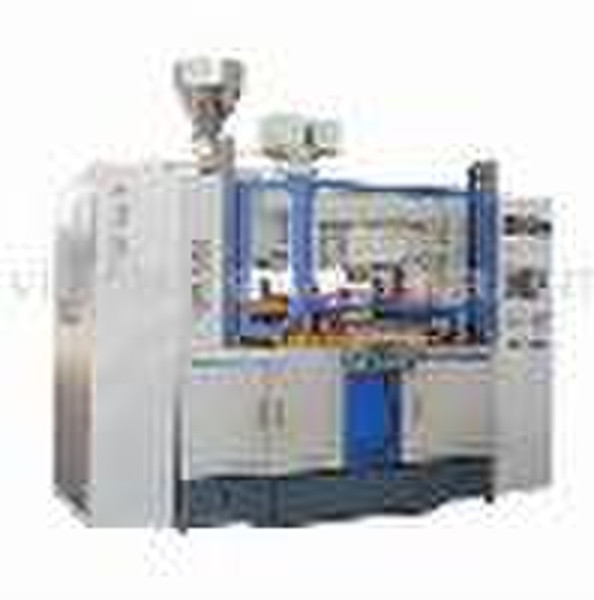

MSZ-40L Injection Blow Molding Machine

Injection blow molding machine is suitable for producing high quality plastic bottles,used as medicine and cosmetic. Features: 1) High pressure injection system 2) PLC or LCD computer controls (optional) 3) Hot-runner injection-blow mold with horizontal three positions for continuous production with no leftovers or waste material. 4) Top brand electric parts and hydraulic parts for long service life 5) Bottle size: 3 to 400mL . 6) 10mL, Cav-12, 100mL, Cav-6 . 7) Materials: PP, PE, PS, SAN. EVA. Dimensions: 2,900 x 1,100 x 2,350mm G.W.: 5,000kg. SpecificationofMSZ-40LInjectionBlowMoldingMachine Item Unit MSZ-40L InjectionSystem 1 ScrewDiameter mm 35 2 ScrewL/D 30:1 3 Max.Theoreticalinjectioncapacity cm3 4 Injectionweight(HDPE) g 60kg/h 5 Injectionpressure Mpa 6 Max.Screwstroke mm 7 Max.Screwspeed rpm 10 210 8 Heatingpower kw 9 9 Nos.ofheatingzone Qty 5 Clamping&BlowingSystem 10 Clampingforceofinject. KN 452 11 Clampingforceofblowing KN 75.4 12 Openingstrokeofinject. mm 140 13 Openingstrokeofblowing mm 140 14 Liftingheightofrotarytable mm 70 15 Maxplanesizeofdie(L*W) mm 560x390 16 Minmouldthickness mm 240 17 Heatingcapacityofmould KW 3.6 StrippingSystem 18 Strippingstroke mm 220 19 Drycycle sec 3.5 DrivingSystem 20 Motorpower kw 22 21 Pressureofhyraulicsystem Mpa 18.5 ProductRange 22 Bottlecapacityrange ml 5 450 23 Max.Bottleheight mm 200 24 Max.Diameterofbottle mm 80 others 25 Min.Workingairpressure Mpa 1 26 Dischargerateofcompressedair M³/mm ≥0.7 27 Consumptionofcoolingwater M³/h 3 28 Totalpower kw 35.6 29 Dimensionofmachine mm 2900×1100×2600 30 Machineweight Ton 5.20
