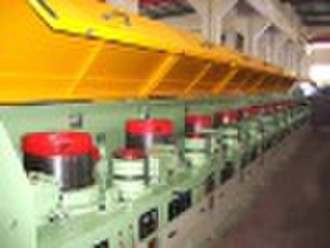

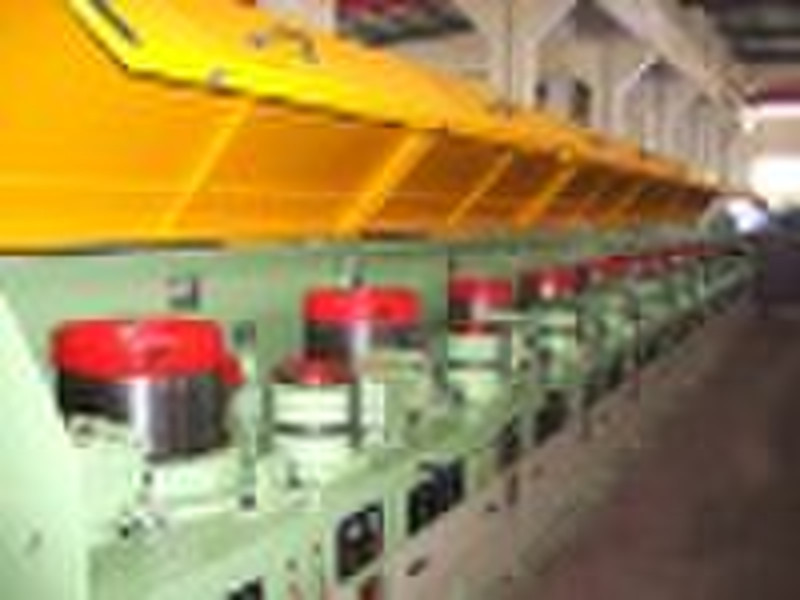

Steel Wire Drawing Machine

Steel Wire Drawing Machine, Straight Line Wire Drawing Machine This Straight line wire drawing machine adopt AC frequency control technology, this product can be combinated with different reel diameter,numbers and types according to users' requirment,which features high dynamic performance,convenient operation,wide application,scope of drawing process and good cooling effort etc. Specification: Item LZ200 LZ300 LZ400 LZ500 LZ560 LZ600 LZ700 LZ750 LZ900 LZ1200 Dia.ofCapstan 200mm 300mm 400mm 500mm 560mm 600mm 700mm 750mm 900mm 1200mm CapstanNos. 2 12 2 12 2 12 2 12 2 12 2 9 2 9 2 9 2 9 2 9 Inletwiresize 2.5mm 2.8mm 4.2mm 5.5mm 6.5mm 8mm 10mm 10mm 14mm 16mm Finishedwire 0.3mm 0.6mm 0.7mm 1.2mm 1.3mm 1.6mm 2.2mm 2.2mm 3mm 3mm Max.Speed 20m/s 20m/s 20m/s 18m/s 15m/s 12m/s 10m/s 10m/s 8m/s 6m/s Power(Kw) 5.5 7 7.5 11 7.5 22 22 45 22 55 45 75 45 90 55 90 90 132 90 160
